MSI announces the GAMING and VENTUS 2X BLACK series of graphics cards including the NVIDIA GeForce RTX 4060 GPU, which will be available on 29 June 2023.

The latest MSI GeForce RTX 4060 series graphics cards are designed to provide exceptional performance for mainstream gamers and produces 1080p resolution and high frame rates with ray tracing and DLSS 3. The GeForce RTX 4060 GPU product incorporates all of the NVIDIA Ada Lovelace architecture’s innovations, including DLSS 3 neural rendering, third-generation ray-tracing capabilities at high frame rates, and an eighth generation NVIDIA Encoder (NVENC) with AV1 encoding.

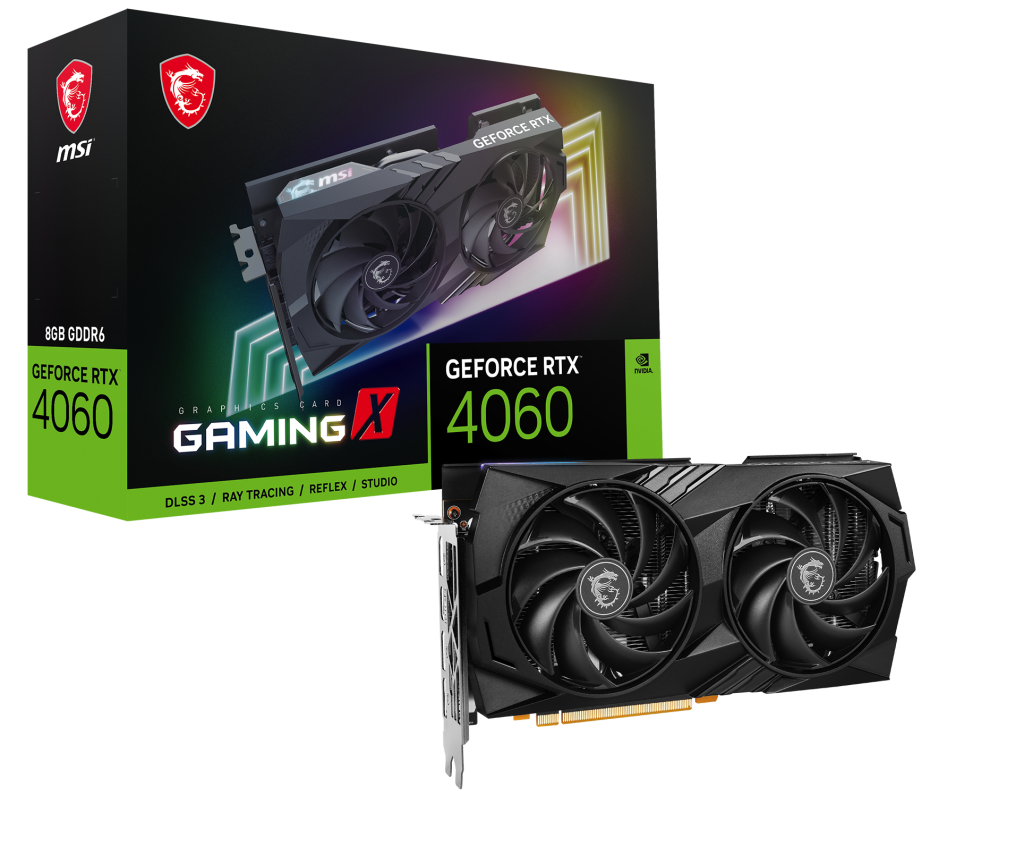

GAMING Series

The RTX 4060 GAMING graphics card has a well-known and recognisable design while keeping the superb combination of performance, cooling, and low noise that gamers have come to expect. The TORX Fan 5.0 design has pairs of three fan blades joined by an outer link to form a rim that directs airflow into the upgraded TWIN FROZR 9 cooling systems. The proven nickel-plated copper baseplate and up to three core pipes at the centre of the heatsink help to properly disperse heat. A brushed-metal backplate with a flow-through design that helps to decrease stored heat. Furthermore, Mystic Light covers the graphics card’s outside, glowing colour in tune with the rest of the PC through Mystic Light tune and Ambient Link.

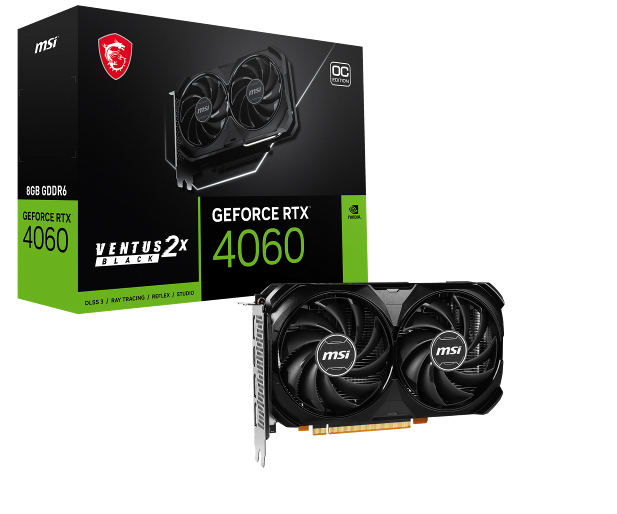

VENTUS Series

The VENTUS series is a dependable and cost-effective solution for gamers looking for a price-performance-focused GPU. With its no-frills Spartan design philosophy, VENTUS 2X BLACK keeps the necessities to complete any work at hand and includes a black exterior variation of the original that goes in excellent with covert dark-themed builds. The graphics card has the award-winning TORX Fan 4.0, an enhanced backplate, and a well-rounded appearance perfect for any setup.

Software Support

MSI AFTERBURNER

MSI Afterburner is the most widely recognised and extensively used graphics card overclocking software in the world. It gives users complete control over their graphics card and allows them to monitor critical system parameters in real time. Afterburner provides a free performance increase for a more fluid in-game experience due to greater FPS. MSI Afterburner’s newest version, which supports current-generation graphics cards, can be downloaded at msi.com.

MSI CENTER

The exclusive MSI Centre software package enhances the user experience with simple tools. It has Frozr AI Cooling, which unifies the system fans linked to a compatible MSI motherboard to react to variations in GPU heat output.

Product Specifications

MODEL NAMEGeForce RTX™ 4060 GAMING X 8GGeForce RTX™ 4060 GAMING 8GGeForce RTX™ 4060 VENTUS 2X BLACK 8G OCGeForce RTX™ 4060 VENTUS 2X BLACK 8G
GRAPHICS PROCESSING UNITNVIDIA® GeForce RTX™ 4060NVIDIA® GeForce RTX™ 4060NVIDIA® GeForce RTX™ 4060NVIDIA® GeForce RTX™ 4060
INTERFACEPCI Express® Gen 4 x16 (uses x8)PCI Express® Gen 4 x16 (uses x8)PCI Express® Gen 4 x16 (uses x8)PCI Express® Gen 4 x16 (uses x8)
CORE CLOCKSExtreme Performance: 2610 MHz (MSI Center) Boost: 2595 MHzExtreme Performance: 2475 MHz (MSI Center) Boost: 2460 MHzExtreme Performance: 2505 MHz (MSI Center) Boost: 2490 MHzExtreme Performance: 2475 MHz (MSI Center) Boost: 2460 MHz
CUDA® CORES3072 Units3072 Units3072 Units3072 Units
MEMORY SPEED17 Gbps17 Gbps17 Gbps17 Gbps
MEMORY8GB GDDR68GB GDDR68GB GDDR68GB GDDR6
MEMORY BUS128-bit128-bit128-bit128-bit
OUTPUTDisplayPort x 3 (v1.4a) HDMI™ x 1 (Supports 4K@120Hz HDR and 8K@60Hz HDR and Variable Refresh Rate (VRR) as specified in HDMI™ 2.1a)DisplayPort x 3 (v1.4a) HDMI™ x 1 (Supports 4K@120Hz HDR and 8K@60Hz HDR and Variable Refresh Rate (VRR) as specified in HDMI™ 2.1a)DisplayPort x 3 (v1.4a) HDMI™ x 1 (Supports 4K@120Hz HDR and 8K@60Hz HDR and Variable Refresh Rate (VRR) as specified in HDMI™ 2.1a)DisplayPort x 3 (v1.4a) HDMI™ x 1 (Supports 4K@120Hz HDR and 8K@60Hz HDR and Variable Refresh Rate (VRR) as specified in HDMI™ 2.1a)
HDCP SUPPORTYYYY
POWER CONSUMPTION115 W115 W115 W115 W
POWER CONNECTORS8-pin x 18-pin x 18-pin x 18-pin x 1
RECOMMENDED PSU550 W550 W550 W550 W
CARD DIMENSION (MM)247 x 130 x 41 mm247 x 130 x 41 mm199 x 120 x 41 mm199 x 120 x 41 mm
WEIGHT (CARD / PACKAGE)587 g / 1000 g587 g / 1000 g546 g / 783 g546 g / 783 g
DIRECTX VERSION SUPPORT12 Ultimate12 Ultimate12 Ultimate12 Ultimate
OPENGL VERSION SUPPORT4.64.64.64.6
MAXIMUM DISPLAYS4444
G-SYNC® TECHNOLOGYYYYY
DIGITAL MAXIMUM RESOLUTION7680 x 43207680 x 43207680 x 43207680 x 4320
* Product specification, functions and appearance may vary by models and differ from country to country. All specifications are subject to change without notice.
